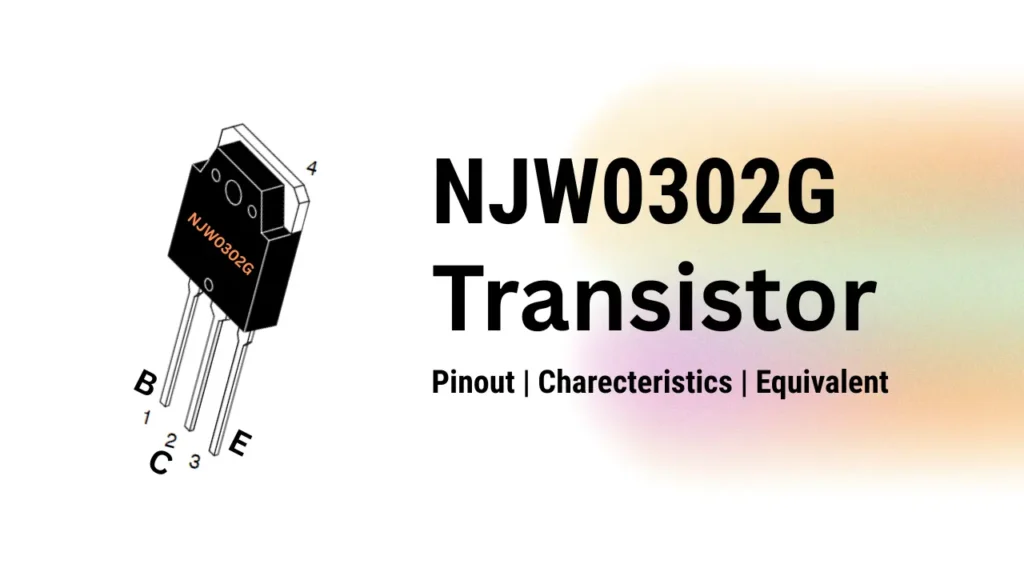

NJW0302G is a Powerful PNP audio output transistor power transistor, used in many high fidelity audio amplifier circuits. IN this article discuss about the pinout, Characteristics and equivalent PNP transistor as a replacement for NJW0302G Transistor.
Characteristics of NJW0302G Transistor
- High Collector-Emitter Voltage (VCEO): 250 V
- High Collector-Base Voltage (VCBO): 250 V
- High Emitter-Base Voltage (VEBO): 5 V
- High Power Dissipation: 150 W
- Continuous Collector current: 15A
- High Transition Frequency (fT): 30 MHz
- Excellent Gain Linearity
- Exceptional Safe Operating Area (SOA)
- Pb-Free and RoHS Compliant
NJW0281G (NPN) and NJW0302G (PNP) are the complementary pair of transistor. This combination is a best option for audio amplifier circuits especially in push pull audio amplifiers.

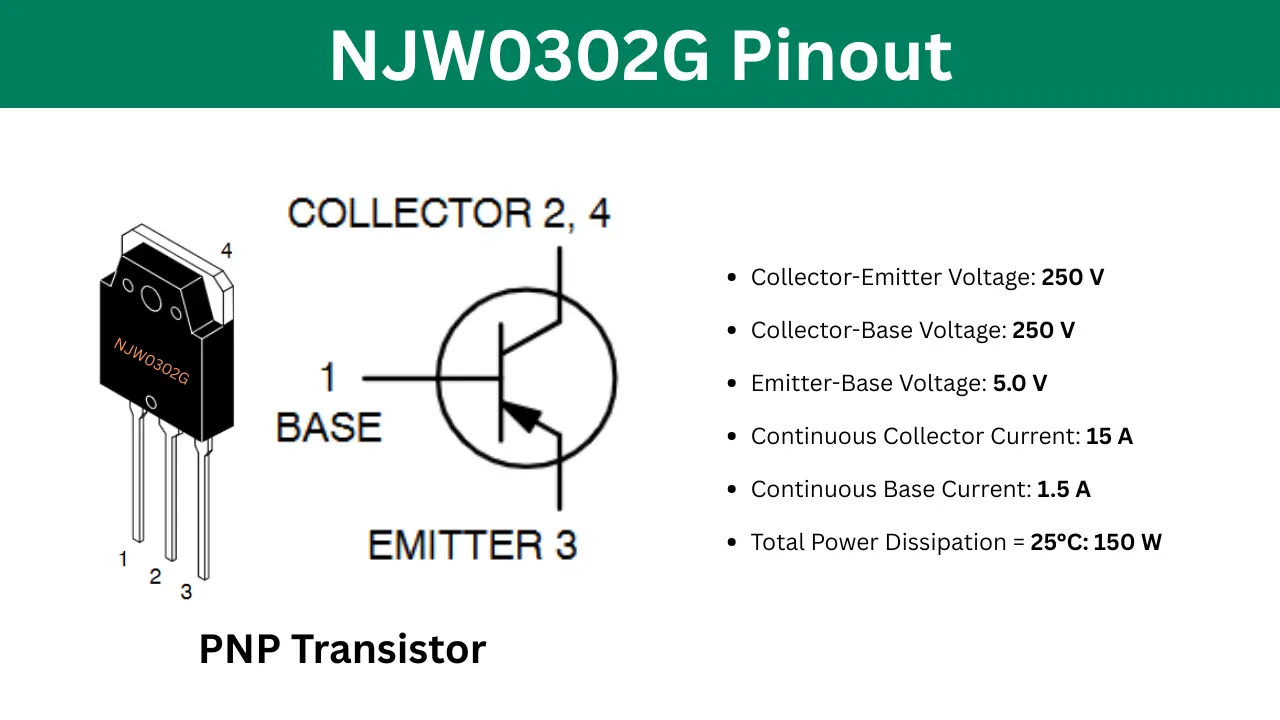

NJW0302G Transistor Pinout
Benefits of NJW0302G Transistor
The NJW0302G power transistor will delivers reliable performance even at high power levels and it making an ideal choice for demanding applications. It provides balanced and consistent behavior when used in complementary configurations (NJW02018G Transistor).
This component is accurately reproduces the input signal, ensuring clear and faithful output. With a wide dynamic range, it can handle both soft and loud signals effectively. Additionally, its high bandwidth allows it to respond quickly, making it suitable for high frequency and detailed audio applications.
Equivalent Transistor for Replacement
- 2SA1962: A PNP transistor suitable for audio applications.
- FJA4213 / FJL4215: High-power transistors often used in audio amplification.
- MJL0302A / MJL0302AG: Power transistors with characteristics similar to the NJW0302G.
- MJL1302A / MJL1302AG: Another set of power transistors compatible with the NJW0302G.
