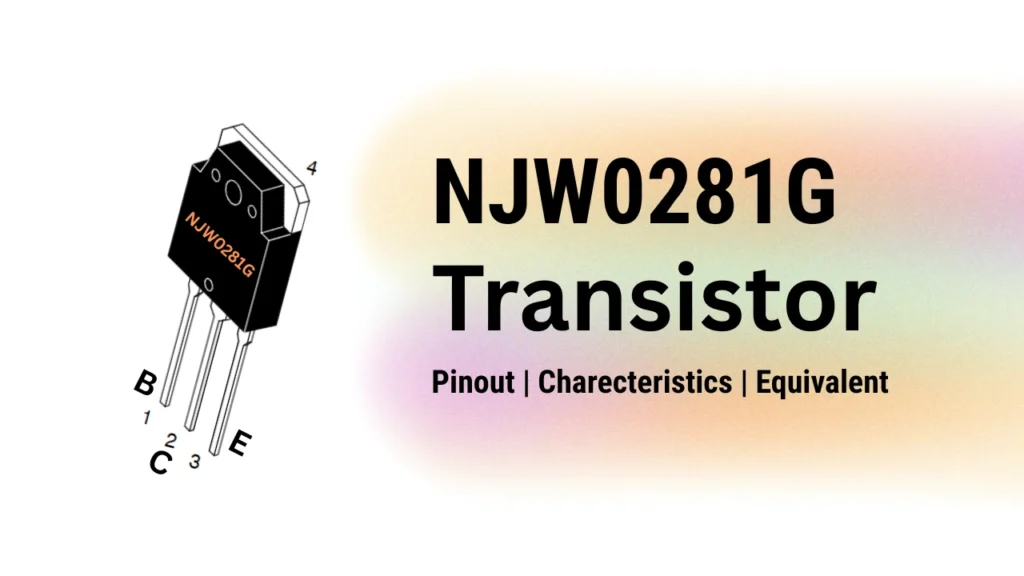

NJW0281G is a Powerful NPN transistor has handle 250V, 15A current and it produce maximum power of 150W. This transistors are most common in high fidelity audio amplifier circuits, such as power stage of the amplifier. In this article sharing the Pinout, Characteristics and Equivalent transistors numbers for replacement.
Advertisements
Key Features of NJW0281G
- This transistor can operate safely under a wide range of voltage and current combinations without damage.
- The complementary pair (NPN and PNP) has closely matched current gain (hFE or β). Matching within 10% ensures symmetrical performance, which reduces crossover distortion in push-pull amplifier designs.
- The current gain remains consistent over a wide range of collector currents. Important for accurate and linear amplification, minimizing distortion.
- High BVCEO (Collector-Emitter Breakdown Voltage) so this device can handle high voltages without breaking down.
- Pb Free and RoHS Compliant, so transistor is environmentally friendly and compliant with Restriction of Hazardous Substances (RoHS) regulations.

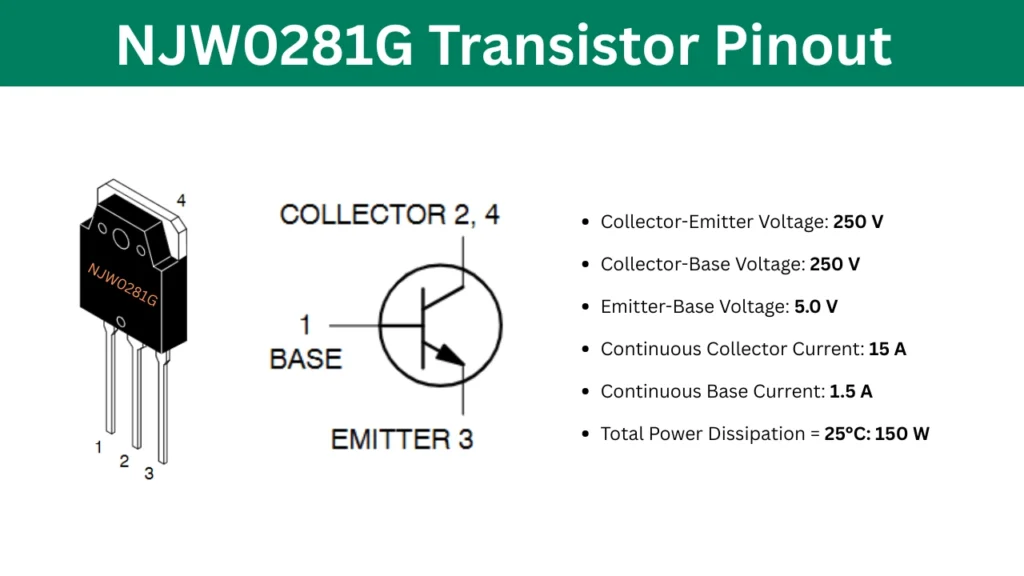

NJW0281 Transistor Pinout
Characteristics of NJW0281G Transistor
- Collector-Emitter Voltage: 250 V
- Collector-Base Voltage: 250 V
- Emitter-Base Voltage: 5.0 V
- Collector-Emitter Voltage at Base-Emitter Voltage = -1.5 V: 250 V
- Continuous Collector Current: 15 A
- Peak Collector Current: 30 A
- Continuous Base Current: 1.5 A
- Total Power Dissipation at Case Temperature = 25°C: 150 W
- Operating and Storage Junction Temperature Range: -65°C to +150°C
Equivalent Transistor for Replacement
- 2SC5200 – NPN, 230 V, 15 A, TO-264, commonly used in audio amps.
- MJW3281A – NPN, 260 V, 15 A, TO-247, robust and widely used.
- TIP35C – NPN, 100 V, 25 A, TO-247, lower voltage but higher current.
- MJL3281A – NPN, 260 V, 15 A, TO-264, audio-grade replacement.
- BDW93C – NPN Darlington, 100 V, 12 A, TO-247, slower but high gain.
Applications
- High quality home audio systems
- Home theater amplifiers
- Stereo receivers
- Professional sound equipment
- Large venue sound systems
- Public announcement (PA) systems
