The CS6N80 is a powerful SMD N channel MOSFET. Used in switching application and power supply circuits. This MOSFET is built with VDMOS technology. its Drain source voltage is 800V and continues Drain current of 8A, but in pulsed Drain current is about 24A. In this article shares the Pinout, specification and its applications.

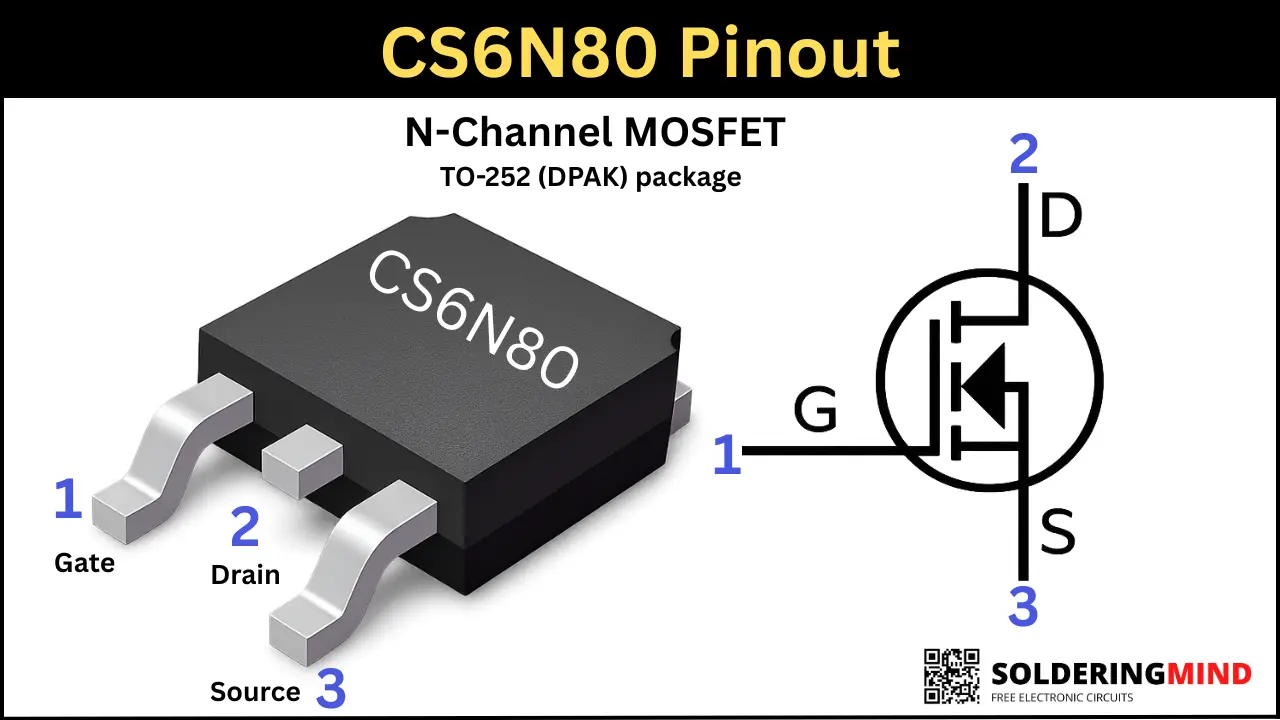

CS6N80 Pinout
Pinout Configuration
Pin No.
Pin Name
1
Gate (G)
2
Drain (D)
3
Source (S)
Specifications
Parameter
Value
Drain-Source Voltage (VDS)
800V
Continuous Drain Current (ID)
6A
Pulsed Drain Current (IDM)
24A
Gate-Source Voltage (VGS)
ยฑ30V
Power Dissipation (PD)
180W
Junction Temperature
-55ยฐC to 150ยฐC
Applications
Power supply circuits
Mobile chargers
SMPS designs
LED drivers
Inverters
Adapters
